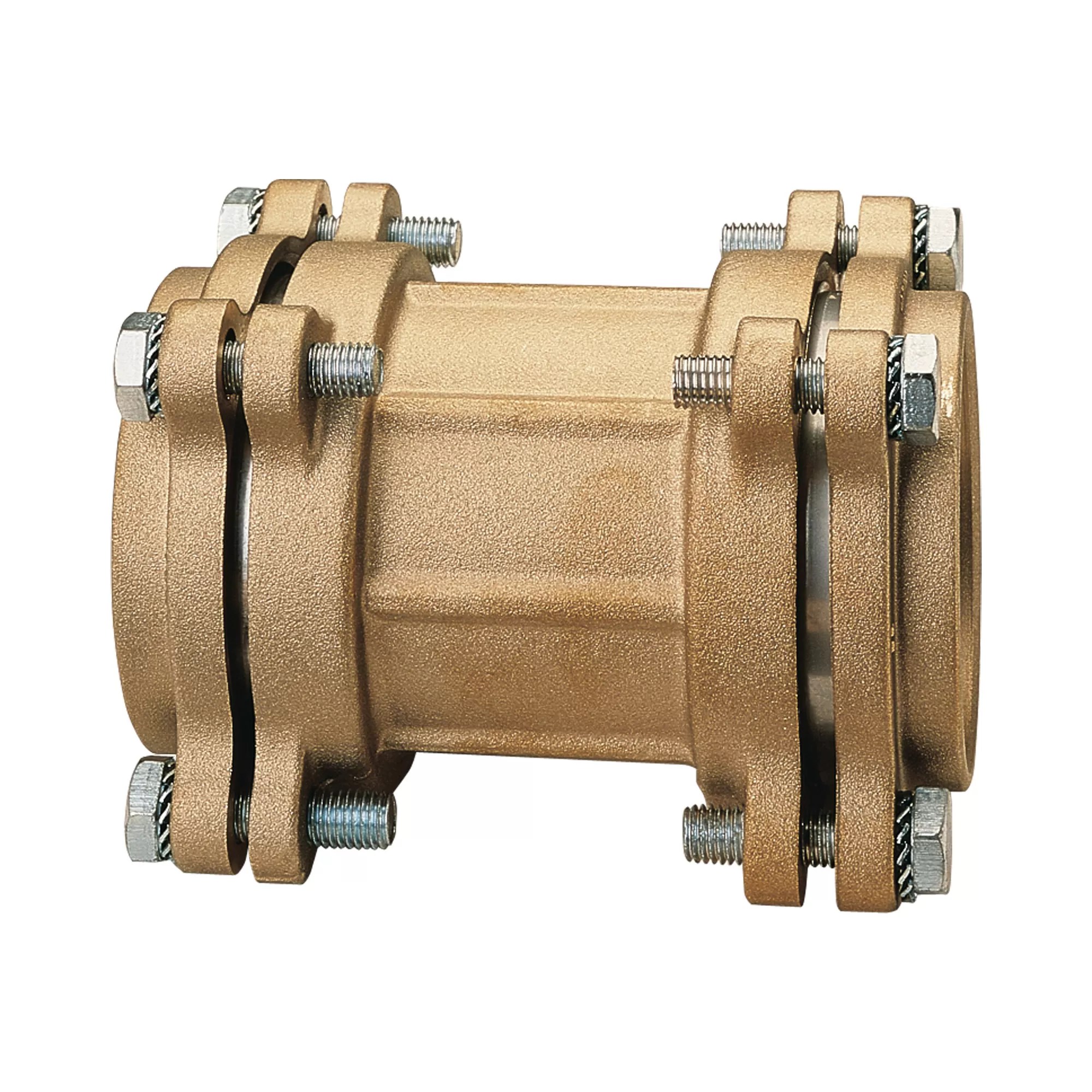

Straight coupling, with flanges - 020FL
Straight coupling, with flanges - 020FL

020FL
Straight coupling, with flanges

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.

SizeCodePacking
7502002120751/6
9002003000901/5
11002004001101/3
Drawing 020FL
Download PDF
Materials 020FL
Download PDF
Installation 020FL
Download PDF
Declaration of Conformity 020FL
Download PDF
Technical featuresTechnical features
