Straight male connector - 015
Straight male connector - 015

015

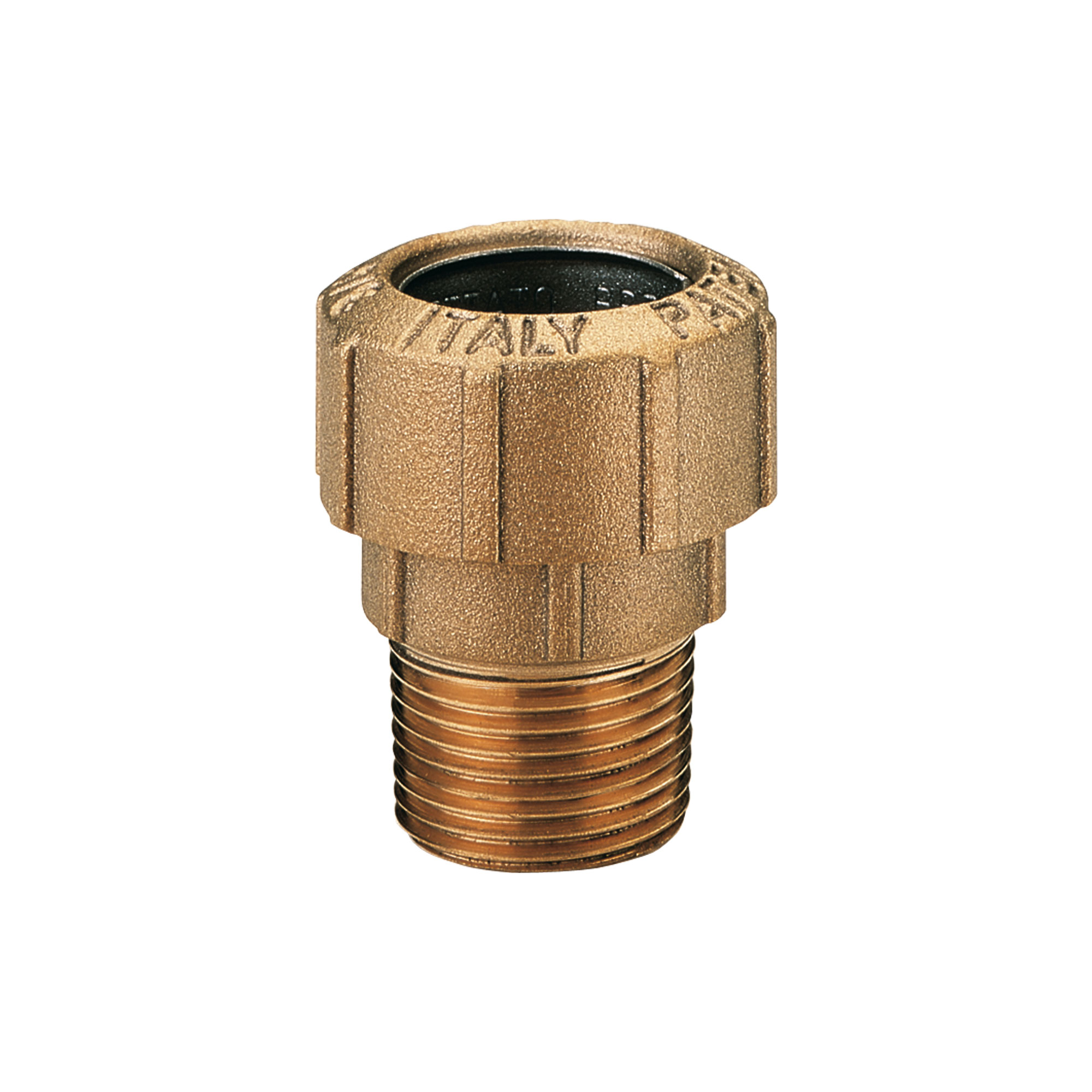

Straight male connector

Minimum and maximum working temperatures: -20°C, 110°C (in absence of steam).
Nominal pressure: 25 bar.
Male threads ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizeCodePacking
1/2"x20015001202020/240
3/4"x25015003402515/180
1"x32015010003212/108
1"1/4x4001501140406/54
1"1/2x5001501120504/32
2"x6301502000632/12
Drawing 015
Download PDF
Materials 015
Download PDF
Installation 015
Download PDF
Declaration of Conformity 015
Download PDF
Technical featuresTechnical features
