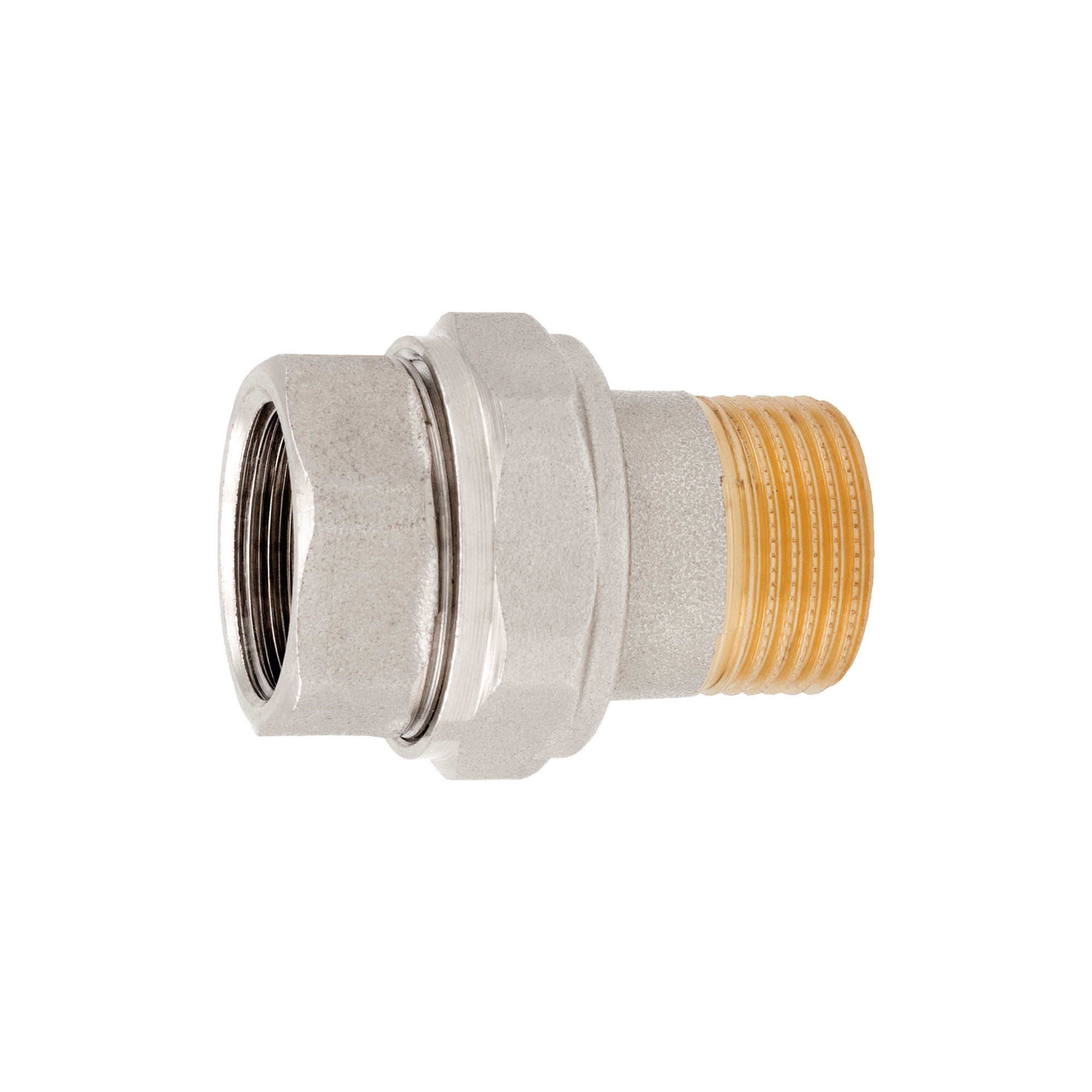

3-piece straight connector, with o-ring

Suitable for domestic water services, heating and air-conditioning plants.
Body in nickel-plated brass.
Minimum and maximum working temperatures: -20°C, 120°C (in absence of steam).
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Size 1”1/2 and 2” have flat seat.

SizePressureCodePacking
1/2"50bar/725psi161001220/240
3/4"40bar/580psi161003415/135
1"40bar/580psi161010010/90
1"1/430bar/435psi16101146/54
1"1/230bar/435psi16101124/36
2"25bar/362,5psi16102002/24
Drawing 161
Download PDF
Materials 161
Download PDF
Declaration of Conformity 161
Download PDF
Technical featuresTechnical features
