154

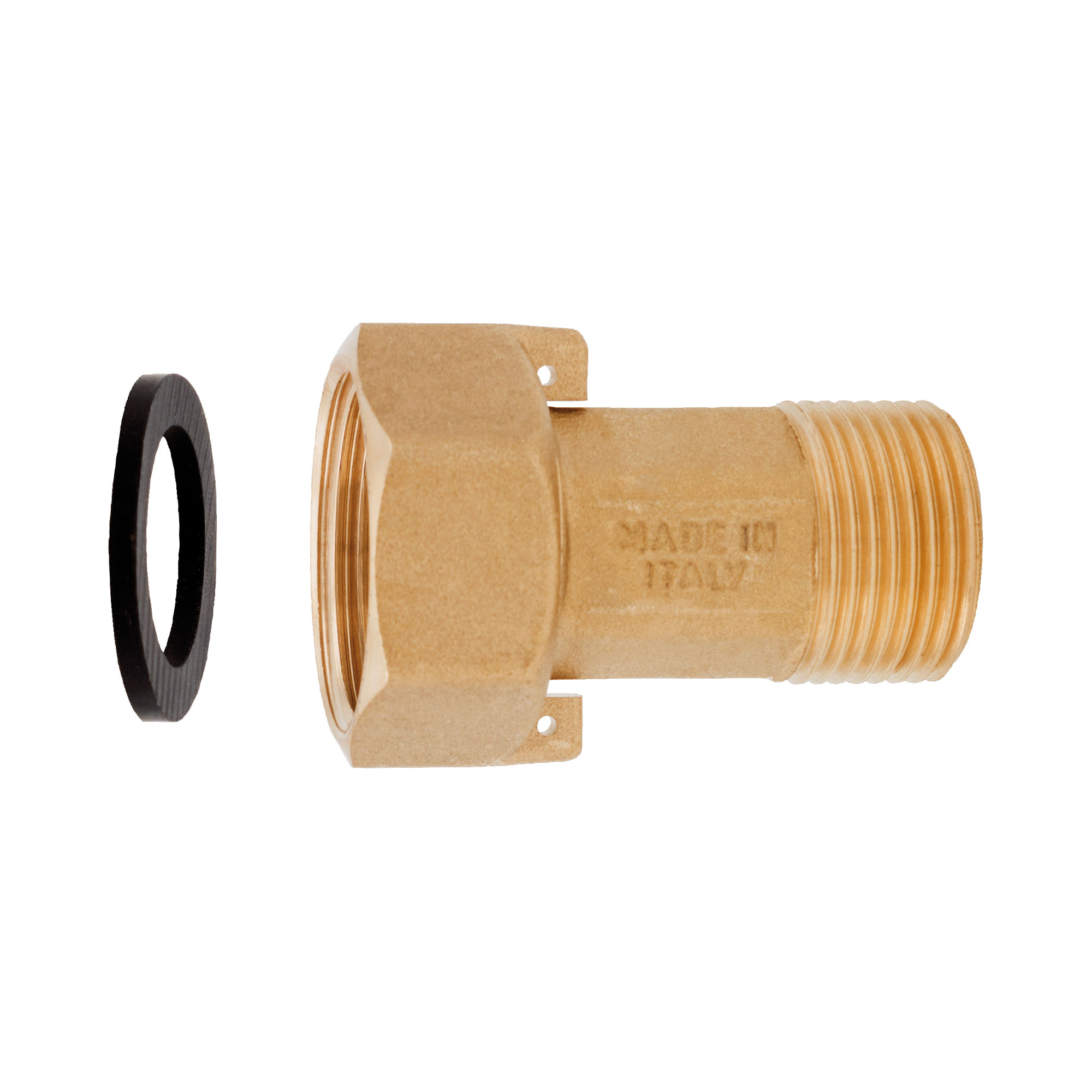

Connector for water meters

Available sizes:
F3/4”xM1/2”, F1”XM3/4”, F1”1/4XM1”, F1”1/2XM1”1/4, F2”XM1”1/2, F2”1/2XM2”.
Nut and tail in brass.
Minimum and maximum working temperatures: -20°C, 120°C.
Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Available also with NPT thread.
ACS approved in 3/4 “and 1” sizes.

SizePressureCodePacking
3/4"x1/2"20bar/290psi154003420/280
1"x3/4"20bar/290psi154010010/150
1"1/4x1"20bar/290psi15401146/84
1"1/2x1"1/420bar/290psi15401122/60
2"x1"1/220bar/290psi15402002/32
2"1/2x2"20bar/290psi1540212I1/20
Drawing 154
Download PDF
Materials 154
Download PDF
Declaration of Conformity 154
Download PDF
