3-piece straight connector, flat washer - 151
3-piece straight connector, flat washer - 151

151

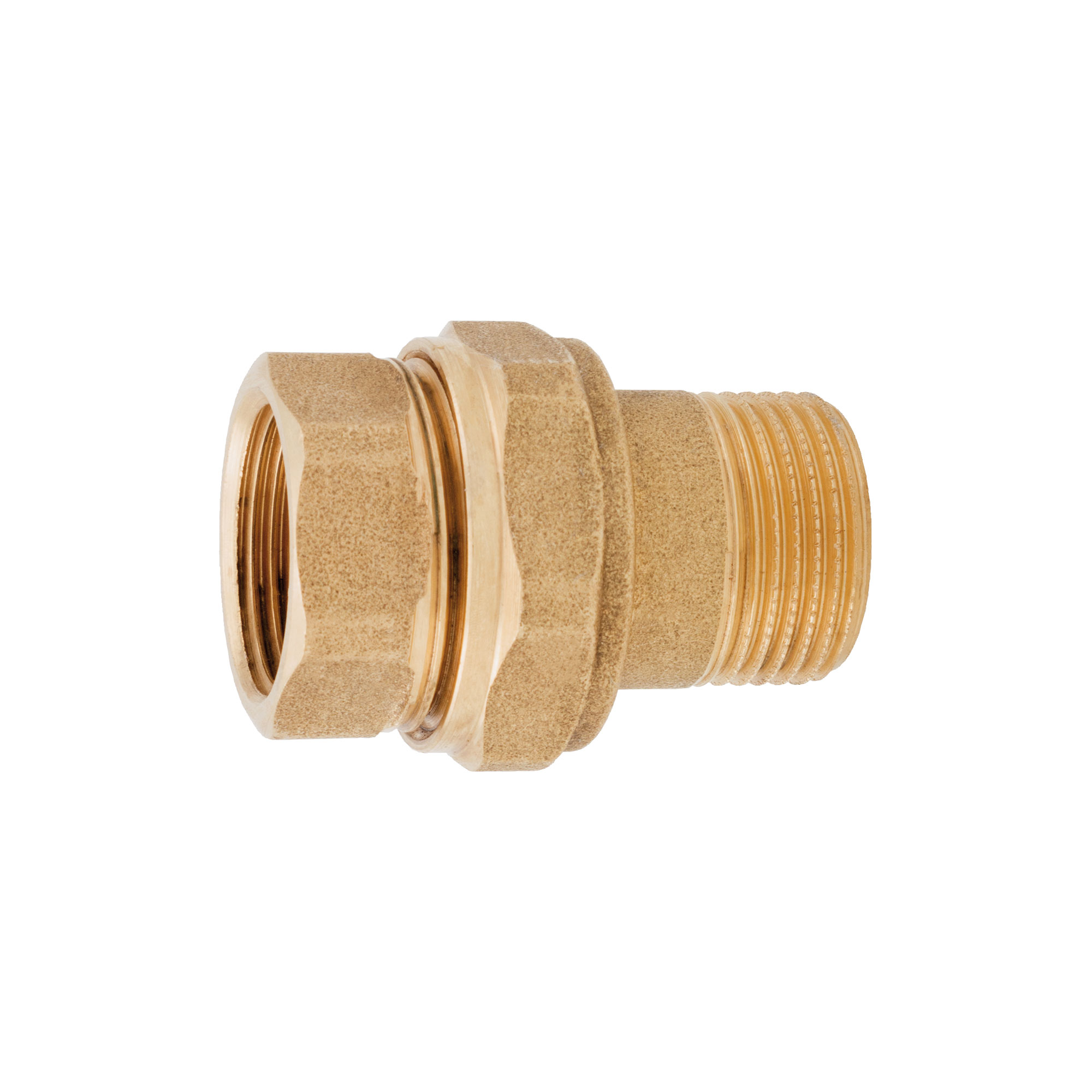

3-piece straight connector, flat washer

Suitable for domestic water services, heating and air-conditioning plants.
Body in brass.
Minimum and maximum working temperatures: -20°C, 120°C (in absence of steam).
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).

SizePressureCodePacking
1/2"50bar/725psi151001220/240
3/4"40bar/580psi151003415/135
1"40bar/580psi151010010/90
1"1/430bar/435psi15101146/54
1"1/230bar/435psi15101124/36
2"25bar/362,5psi15102002/24
Drawing 151
Download PDF
Materials 151
Download PDF
Declaration of Conformity 151
Download PDF
Technical featuresTechnical features
