5-way connector for pumps and tanks - 110
5-way connector for pumps and tanks - 110

110

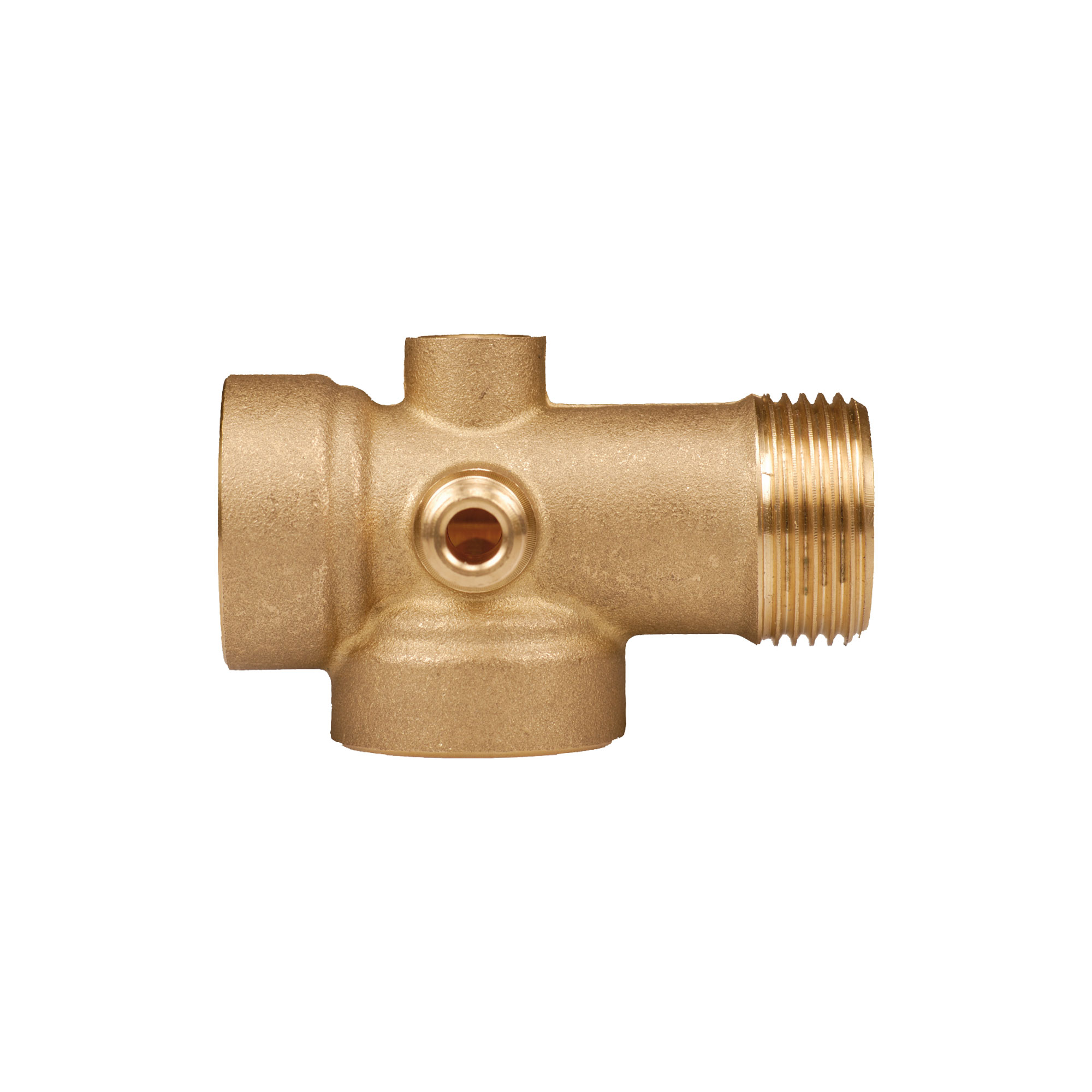

5-way connector for pumps and tanks

Body in brass.
Nominal pressure: 25 bar.
Female threads: ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Male threads: ISO 7/1 (equivalent to DIN EN 10226-1 and BS EN 10226-1).

SizePressureCodePacking
1"25bar/362.5psi11001006/72
Drawing 110
Download PDF
Materials 110
Download PDF
Declaration of Conformity 110
Download PDF
Technical featuresTechnical features
