Backplate female elbow - 548
Backplate female elbow - 548

548

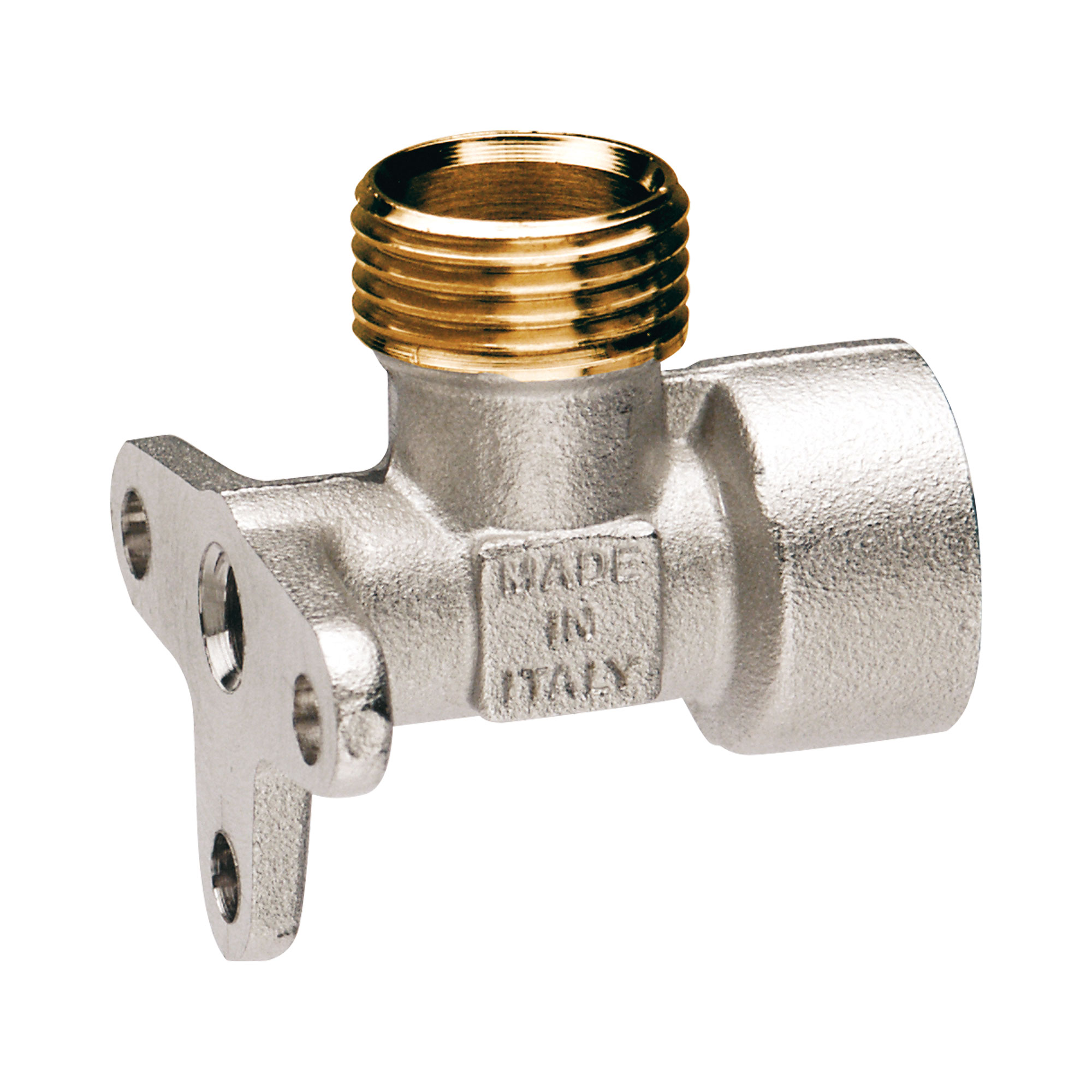

Backplate female elbow

Male thread 1/2” equipped with a conical seat and inner diameter mm.16.
Male thread 3/4” eurokonus.
Maximum working pressure: 20 bar.

Available sizes: 1/2”x1/2”, 3/4”x3/4” eurokonus

SizeCodePacking
1/2"548001201212/168
3/4"54800340348/112
Drawing 548
Download PDF
Materials 548
Download PDF
Declaration of Conformity 548
Download PDF
