Female elbow - 545
Female elbow - 545

545

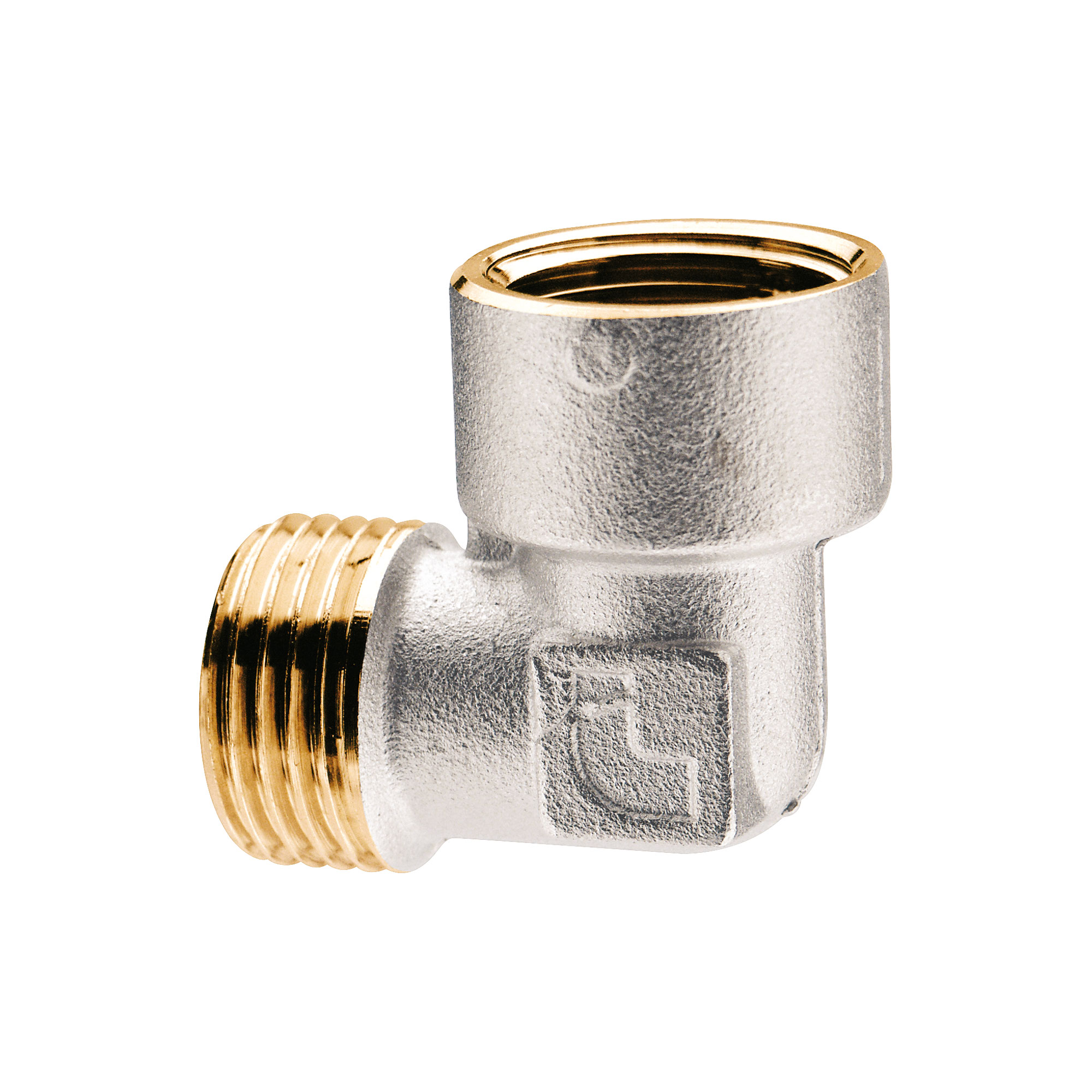

Female elbow

Male thread 1/2” equipped with a conical seat and inner diameter mm.16.
Male thread 3/4” eurokonus.
Maximum working pressure: 20 bar.

Available sizes: 1/2”x1/2”,1/2”Mx3/4”F, 3/4”x3/4” eurokonus

SizeCodePacking
1/2"x1/2"545001201214/308
1/2"x3/4"54500120348/176
3/4"x3/4"54500340348/176
Drawing 545
Download PDF
Materials 545
Download PDF
Declaration of Conformity 545
Download PDF
Technical featuresTechnical features
